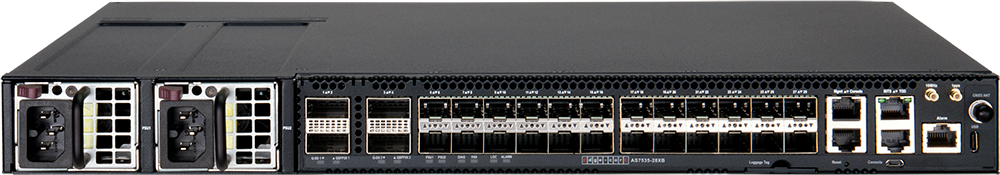

AS7535-28XB

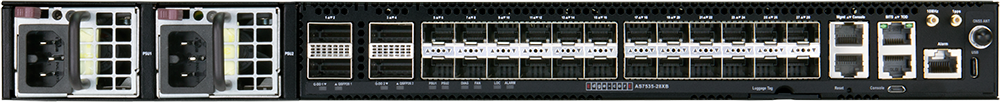

AS7535-28XB - Image 2
AS7535-28XB - Image 3
AS7535-28XB - Image 4

Cell Site Router

AS7535-28XB

The AS7535-28XB is a temperature hardened open disaggregated cell site gateway platform that is designed to provide optimized performance for service provider access and aggregation networks. It utilizes a powerful Qumran family merchant silicon and an Intel Xeon x86 processor with hyper threading technology.

Categories: Carrier Access / Cell Site Router / Intel® Xeon®

  • Open disaggregated cell site gateway for 5G mobile xhaul networks.
  • Supports IEEE1588v2 and SyncE functions in hardware.
  • Supports TSN (Time-Sensitive Networking) IEEE 802.1CM in hardware.
  • Rack mountable in standard 19″ racks.
  • All ports and PSUs on front; fan modules on rear.
  • Hot-swappable, load sharing, redundant AC/48VDC PSUs.
  • Hot-swappable 5+1 redundant fan modules.
  • Management: Ethernet and console RJ-45 ports; USB storage port.
  • Pre-loaded with Open Network Install Environment (ONIE).
  • Compatible with Open Network Linux (ONL)

SPECIFICATION

Processor: Intel® Xeon® Processor D-1539 8 cores 1.6 GHz DDR4: 8 GB x 2 SO-DIMM SATA M.2 SSD: 128GB x 1

Switch Ports: 24 x 25G SFP28, 2 x 100G QSFP28 and 2 x 400G QSFP-DD fixed ports

Switch Silicon: BCM88843 Qumran2A

Switching Capability: 800 Gbps full duplex

Dimensions (WxDxH): 438.4 x 300 x 43.3 mm

Weight: 7.5 kg (16.53 lb)

Operating Temperature: 40°C to 65°C (-40°F to 149°F)

Software: Open Network Install Environment (ONIE)
