Data Center Switch
AS9736-64D
The AS9736-64D can be deployed as a spine switch supporting 100/400 GbE spine to spine or spine to leaf interconnects. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System soſtware, including the open source options Open Network Linux, plus commercial NOS offerings.
Categories: Data Center / Switch
- Cost-effective, open network switch for data center fabric.
- QSFP56-DD switch ports, each supporting 1 x 400G QSFP56-DD, 1 x 100G QSFP28, 1 x 40G QSFP+, or via breakout cables 2 x 200G (2 x 4 lanes 50G PAM4), 4 x 100G (4 x 2 lanes 50G PAM4), 2 x 50G (2 x 2 lanes 25G NRZ), 4 x 25G NRZ, or 4 x 10G NRZ.
- Incorporates Broadcom Tomahawk 4 switch series silicon for non-blocking line-rate performance.
- 2 RU form factor.
- Supports hot/cold aisles with front-to-back airflow SKU.

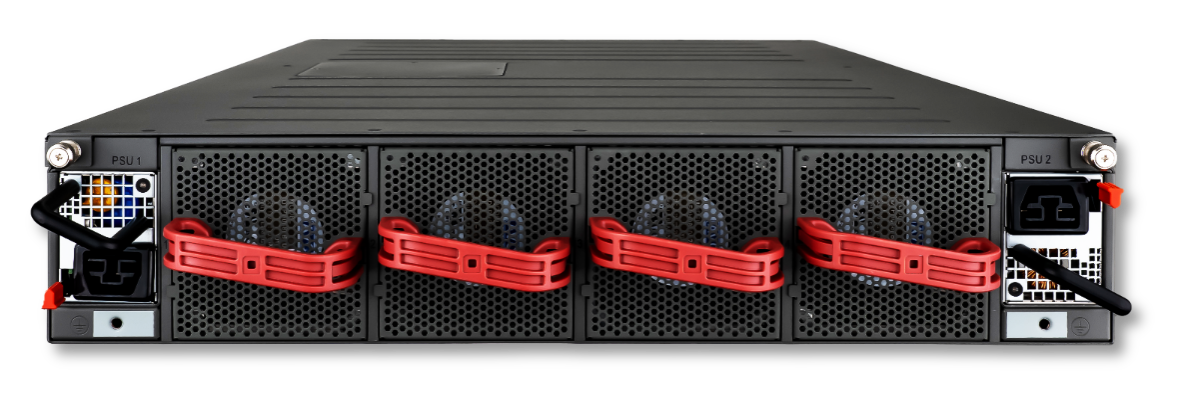

- All ports on front; PSUs and fans accessible from rear.
- Hot-swappable, load-sharing, redundant 2400 W AC/HVDC PSUs.
- 3+1 redundant, hot-swappable fan modules.
- Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.
- Compatible with Open Network Linux (ONL), the open-source, OCP reference NOS.
