Hyper Network Appliance
CSP-7551

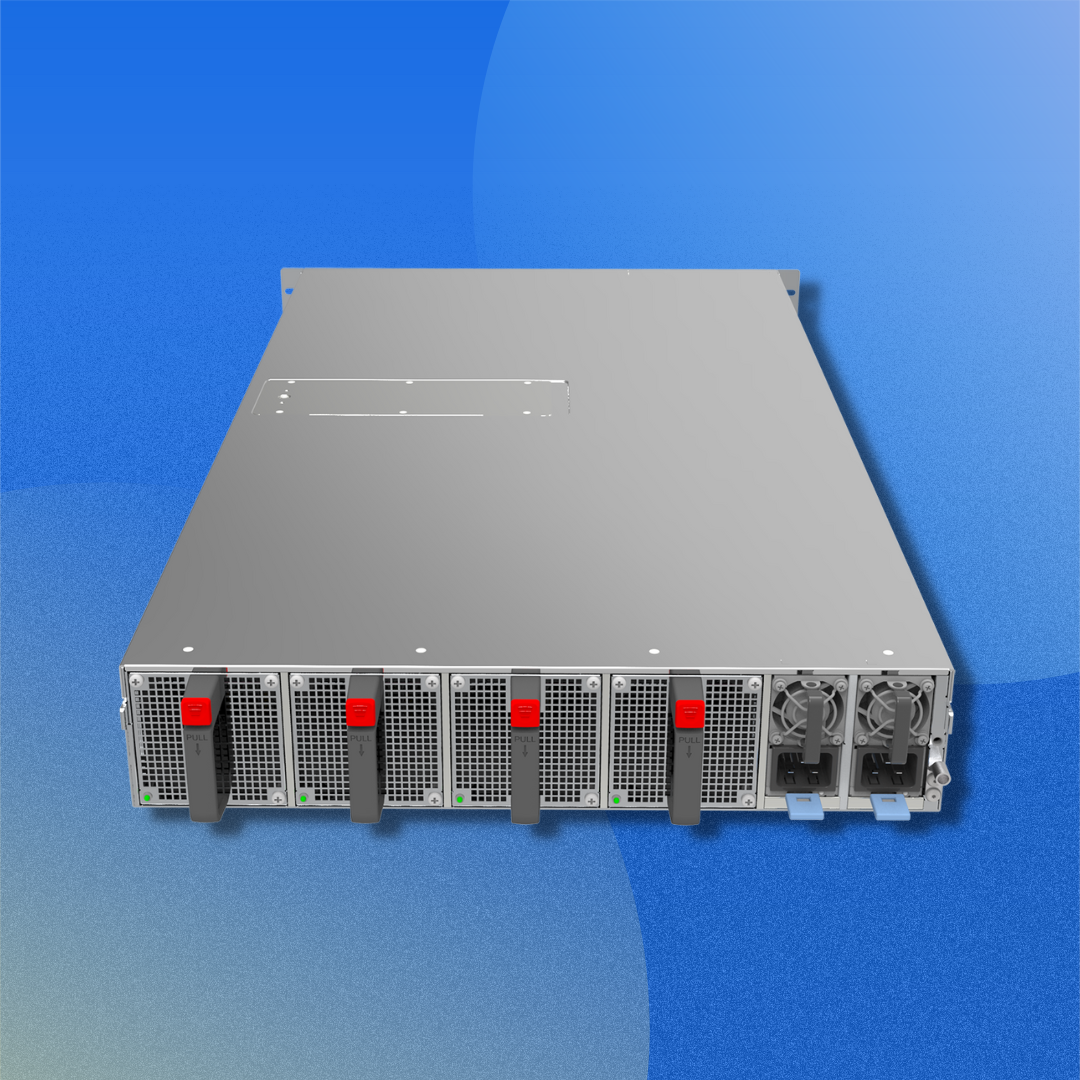

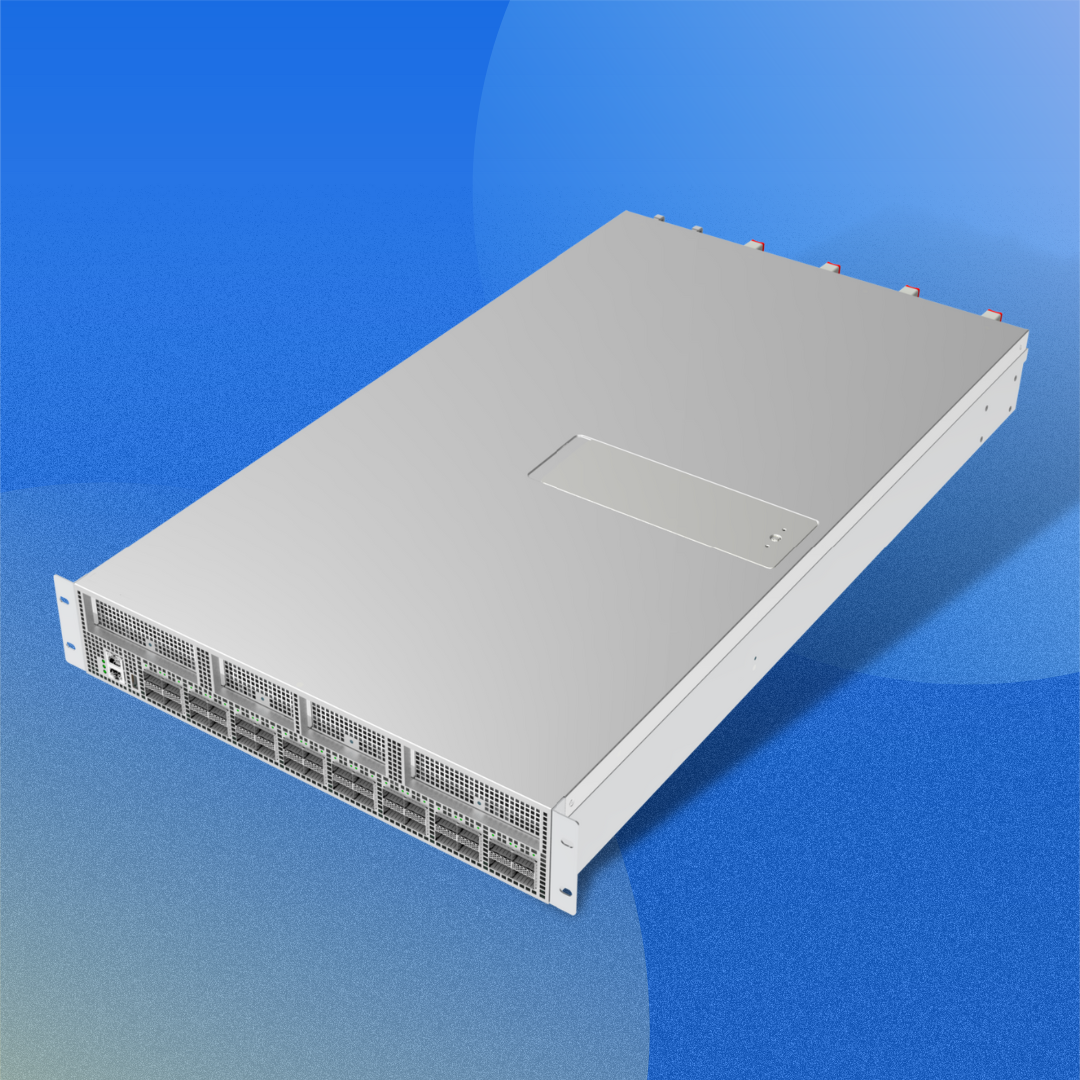

The Accton CSP-7551 is a combination server-switch hardware appliance based on dual-socket Intel® Xeon® processors, supporting up to 28 cores per socket. The switch system includes 32 QSFP28 (100 GbE) network ports, all contained within a single 2U chassis form-factor.
Categories: Hyper Network Appliance / Switch / Server / Intel
- Dual processor sockets:
- Intel® Xeon® processor family 1st Gen Intel® Xeon® Scalable Processors or 2nd Gen Intel® Xeon® Scalable Processors
- Up to 28 cores per socket
- 16 DIMM slots per socket for DDR4 2133/2400/2666 MHz ECC LRDIMM or RDIMM
- Flexible local storage options for optimized system performance:
- 2 x M.2 NVMe sockets
- Maximum of two devices
- Network switch interfaces:
- 32 x 100 GbE QSFP28 ports
- Optional 4 PCIe expansion slots for customized Stratix 10 MX FPGA card or standard PCIE card
- Two PCIe x16
- Two PCIe x8
- Sufficiency path for system data and management
- Two PCIe x16
- One PCIe x4
- Dual redundant AC PSUs (DC PSUs are optional)
- Remote management through a Baseboard Management Controller (BMC)
